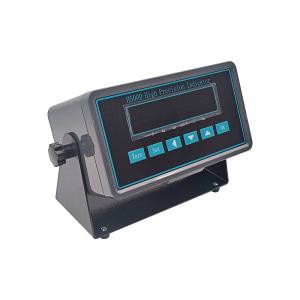

24 Bit LED RS232 Digital Weight Indicator For Lab Testing

  • 1
  • 2

Brand Name : BRANZ

Model Number : H5000

Place of Origin : China

MOQ : 1pc

Payment Terms : L/C, T/T, Western Union,paypal

Supply Ability : 10000pcs

Delivery Time : 5~8days

Packaging Details : Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Customized : Customized

Display type : Led

Application : Lab testing

Measuring Range : ±5.0mV/V

A/D Conversion Speed : Highest 4800 (18bit)

Cable from Indicator to Load cells : <=50m

Resistance of Load Bridge : >100OHM

Speed of Output : 400,200,120,50,25,12.5,7.5Hz

Sensitivity : 2.0mV/V

Accuracy : 1/100000

Load cell connection : 4wires or 6 wires load cells

Highest Resolution : 24bit(50Hz)

Contact Now

24-bit LED RS232 Weighing Indicator For Lab Testing (H5000)

Operation panel:

24 Bit LED RS232 Digital Weight Indicator For Lab Testing

Key Features:

Serial port option:RS232

Unit selection as mV/V, kg,kN, Nm,t

With large LED display and plastic housing

Communication port, used for communication from indicator to computer, support custom high-speed protocol, Modbus and so on

High precison with good stability

High speed of sampling

Importing 24 bits modulus chips and special modular ground line seperated design to guarantee good stability.

Can be connected with 4 wires or 6 wires load cells with big measuring range

Mainly used for high precision data acquisition and verification assessment

Datasheet:

MODEL UNIT SPECIFICATIONS
Accuracy
1/100000
Resistance of Load Bridge
OHM
>100
Sensitivity
Measuring Range
mV/V
mV/V
2.0
±5.0
Highest Resolution
Bits
24bit(50Hz)
A/D Conversion Speed
Samples/second
Highest 4800 (18bit)
Speed of Output
Hz
400,200,120,50,25,12.5,7.5
Cutoff Frequency of Digital
Filtering
Hz
120,40,18,8,4,2,1,0.5,0.25
Excitation Voltage of Load
Bridge
 v
±10
Cable from Indicator to
Load cells
m
<=50
Cable of communication
m
<=15
Linearity
%
±0.002
Temperature effect by 10 oC
ppm/10 ℃
10 ppm/10 oC
Communication port
Isolated RS232
Communication Protocol
Modbus
PC Software
V4.0
Digital Load Cells Measuring
Linear correction Points
10 setting points
Baud rate selection
9600 to 115200
Current consumption
mA
50
Operation Temperature
℃
-10...+40
Using Temperature
℃
-20...+60
Stocking Temperature
℃
-20...+60
Dimension (L*W*H)
mm
220×120×160

Control software:

24 Bit LED RS232 Digital Weight Indicator For Lab Testing
